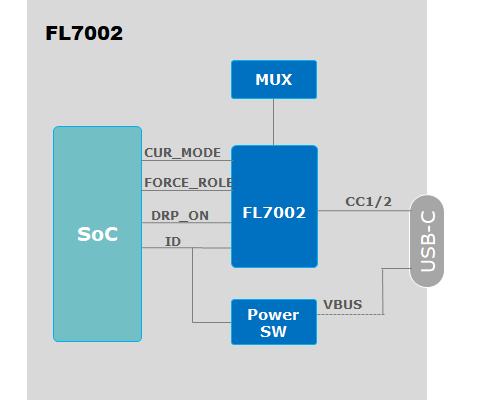

FL7002 is an easy and affordable way to add Type-C connector functionality to any USB product. The FL7002 integrates all of the required passive components into a single small package. FL7002 automatically performs detection of what is attached to a Type-C connector and provides that information to the platform, making it suitable for phones, laptops, cables, chargers, and more.

Features

  • Single chip for CC/Vconn control
  • Support Type-C specification v1.1
  • Support UFP/DFP/DRP
  • Integrated Rd/Rp advertisement
  • Integrated Vconn switch
  • Integrated voltage regulators
  • No external components required
  • Low operating current
  • Very Low standby current (uA)
  • Working voltage is 2.7V-5.0V
  • Package: DFN 8 pin and DFN 16 pin
  • Dead Battery support
    • Lower than 2.7V, the CC will be forced to UFP
  • Open-drain indicators forID Pin (OTG support)
    • DEBUG Mode
    • Cur_Mode
    • Cur_Mode_1P5A
    • Cur_Mode_3A
