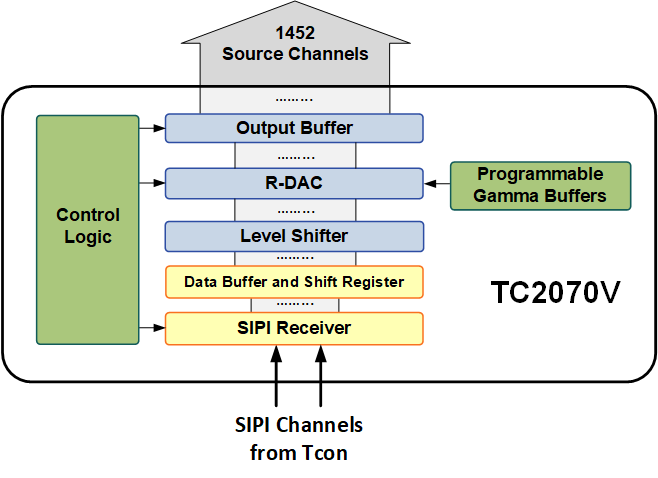

TC2070V is an automotive grade 1452/1440/1380/1284/1212/1176/1128/1092/1044-channel source driver for high resolution TFT LCD. It is designed for COG (Chip-on-glass) application. The input interface is SIPI™ (Scalable Intra Panel Interface) which was developed and patented by Parade Technologies. SIPI is a high speed, point-to-point interface between the Timing Controller (TCON) and Source Driver (SD), including the TC2016. The SIPI intra panel interface provides scalable bandwidth with reduced bus width, low EMI and low power, a more robust protocol to establish the high-speed link, and enhance system reliability. SIPI was developed to address the newer demands created by increased display performance on notebook and tablet PCs and other consumer electronics applications.

On the output side, the TC2070V converts 8-bit (RGB888) digital data into a 256-level gray scale analog voltage for each sub-pixel channel. It also supports up to 22 reference voltages for Gamma correction. For implementation specific applications it can be configured to 6-bit color depth.

Key Features

  • 1452 channel source driver for TFT LCD
  • SIPI 1.2 interface with 1 or 2 lane operation up to 1.6Gb/s per lane
    • Display data scrambling and 8B/10B encoding
    • Embedded clocking
    • Error correction for all control data
    • Low EMI/RFI
    • Supports SIPI link Spread Clocking
  • Driver Output: 1452/1440/1380/1284/1212/1176/1128/1092/1044 channels
  • 8-bit color depth for 256-level gray scale
  • Embedded programmable internal gamma buffers
  • Gamma correction levels: 14 or 22 (2in or 4in)
  • Supports Main buffer chopping and Gamma buffer chopping mode
  • Supports LTPS 1:2/1:3 MUX
  • Supports n-line Dot inversion, column inversion, square inversion, and Zigzag
  • Dynamic bias control
  • Protocol based dynamic power saving
  • Wide input common-mode voltage range
  • 60mV input sensitivity
  • Supports SIPI advanced features for debugging and manufacturing test
    • One wire auxiliary status channel (ASC) for source driver status monitoring
    • Symbol errors checking at normal operation
    • Extensive configuration packets for Source Driver configuration
  • Logic supply voltage: 1.5V
  • LCD driver supply voltage: AVDDP 4.0~6.0V, AVDDN -6.0~-4.0V
  • -40°C to 105°C Ambient Operating Temperature Range
  • Package: COG

Applications

  • High resolution automotive COG LCD panels
